Understanding the Difference Between Fluoropolymer Linings and Fluoropolymer Coatings

Modern manufacturing often revolves around processes that rely on harsh chemicals, high temperatures and strict regulatory requirements regarding contaminants in the final product. Industries most impacted include sectors such as chemical processing, mining, solar panel manufacturing and semiconductor manufacturing, where the most minuscule particle can significantly impact product quality and safety.

Many of these industries are forecast to grow rapidly. For instance, a closer look at just one of these sectors, semiconductor manufacturing, shows production is soaring, with the U.S. alone forecast to increase its domestic chip manufacturing by 203% in the decade following the CHIPS and Science Act.1

As these industries push toward higher purity standards and more aggressive chemical processes, choosing the proper protection system becomes increasingly crucial for maintaining equipment integrity and operational efficiency.

High purity requirements combined with a harsh chemical environment highlight the importance of understanding the difference between fluoropolymer linings and fluoropolymer coatings to protect the storage tanks, process vessels and transportation equipment at risk of corrosion.

While some use the terms interchangeably, linings and coatings are not the same. A deeper understanding of the differences and features of each type of system can guide decision-making between the two types of corrosion protection. A better understanding can mean the difference between optimizing performance or premature system failure.

Fluoropolymer linings vs. fluoropolymer coatings: technical distinctions

Fluoropolymer lining: A fluoropolymer lining is a thick protective layer made from fluoropolymer materials, often applied as a sheet or bonded layer to the surface of storage tanks, process vessels, piping, or transportation equipment. It provides robust protection against corrosion, chemicals, and wear.

Fluoropolymer linings are robust, thick-film systems (typically ranging from 60 to 120 mils) that function as a comprehensive barrier between the substrate (such as steel or fiberglass) and the process medium. These lining systems are mechanically bonded to the substrate and often incorporate multiple enhanced bonding layers, including primers and intermediate layers, creating a complex protective structure. The substantial thickness allows fluoropolymer sheet lining systems to withstand significant chemical attack, permeation and provide long-term protection against demanding process conditions.

Fluoropolymer coating: A fluoropolymer coating is a thin layer of fluoropolymer material applied to a surface to enhance its properties, such as corrosion resistance, chemical resistance, or friction reduction.

In contrast, fluoropolymer coatings are thinner applications (typically 25 to 30 mils) that are applied and adhere directly to the substrate surface. Because they are bonded directly to the steel, they provide no protection from the difference in coefficient of expansion between the substrate and the polymer coating. While coatings offer a mild corrosion barrier and corrosion resistance for less demanding applications, coatings lack the structural integrity and permeation resistance of a fluoropolymer sheet lining system. Coatings are often applied through spray, dip or brush, making them an economical option for mild chemical exposure.

Fluoropolymer coating failures and service life implications

When fluoropolymer coatings fail, the consequences can be severe and immediate. Standard failure modes include delamination, blistering and cracking where the coating separates from the substrate; pinhole formation, which allows aggressive chemicals to penetrate the base material; difficulty in application at complicated configurations and corners leading to thinner film build-up at stress concentration points; or erosion over time in high-flow areas. These failures often result in rapid substrate corrosion, product contamination and unplanned equipment downtime. While a coating thickness of 25 to 30 mils might provide adequate initial protection, permeation through the thinner barrier becomes increasingly likely as the coating ages, permeation occurs overtime, particularly in environments with elevated temperatures or aggressive chemicals.

In contrast, fluoropolymer lining systems typically present differently and over longer timeframes. The substantial thickness and multi-layer construction of linings (60-120 mils) create a more robust barrier that, even when surface wear or permeation occurs, has a robust thickness to back it up.

This fundamental difference in protection against potential failure modes directly impacts both maintenance planning and equipment reliability, as lining systems typically provide service life measured in decades rather than years, aligning with major turnaround schedules rather than requiring frequent inspection and repair.

Key performance differences include:

• Permeation resistance: Linings provide superior resistance to chemical permeation due to their multi-layer construction and greater thickness
• Temperature tolerance: Lined equipment typically handles higher operating temperatures due to the thermal stability of thick fluoropolymer layer and the systems ability to compensate for the difference in coefficient of thermal expansion between the fluoropolymer plastic and the steel substrate.
• Impact resistance: Lining systems offer enhanced protection against mechanical stress and impact damage by virtue of the greater film thickness.
• Service life: Properly installed linings generally deliver longer service life in aggressive chemical environments by providing better resistance to permeation and greater bond strength to the substrate.

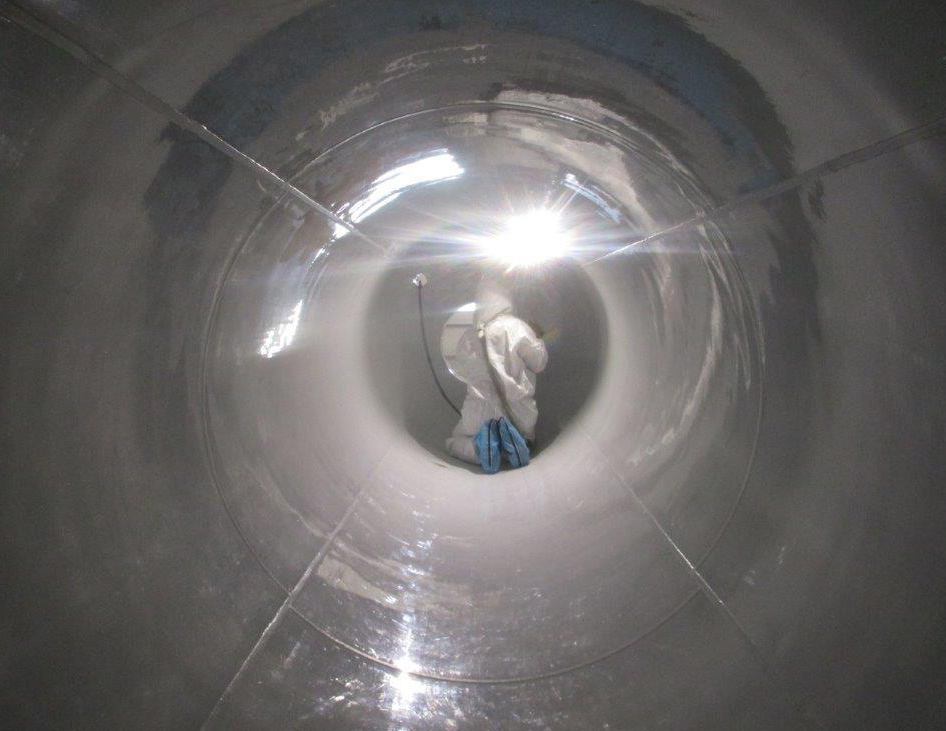

• Field installation capabilities: Fluoropolymer sheet linings can be installed in the field to large tanks and are typically field repairable should they become damaged after being in-service for many years.
• Cost-performance ratio: While linings have higher initial costs, they often prove more economical over time in demanding applications

The Electro Chemical Manufacturing advantage in fluoropolymer lining systems

Electro Chemical Manufacturing, now part of Knight Material Technologies, specializes in engineered fluoropolymer lining solutions that protect critical process equipment in the most demanding industrial environments. Our comprehensive lining systems utilize advanced fluoropolymers, including PVDF, ECTFE, ETFE, PFA, FEP and PTFE, which are selected specifically for each application’s unique requirements. Through decades of experience, ECM has developed proprietary installation techniques with an experienced team of highly trained professionals to supply the necessary level of mechanical bonding and provide system integrity.

It starts with the engineering team evaluating all relevant factors when designing our lining systems. These factors can include:

• chemical compatibility
• temperature exposure evaluation
• mechanical stress analysis
• process purity requirements

This systematic approach allows us to select the most appropriate fluoropolymer material and determine the optimal lining thickness for each application.

Beyond material selection, proper installation is critical for lining system performance. ECM’s certified installation teams utilize specialized equipment and documented ISO-Quality Controlled procedures to ensure consistent quality. Our field installation capabilities allow us to provide on-site services for large vessels or time-sensitive projects, minimizing equipment downtime and transportation costs.

The engineering support we provide extends beyond initial installation. Our technical team assists in developing maintenance protocols and inspection schedules to maximize lining system longevity. This comprehensive approach helps clients achieve optimal equipment protection while managing long-term operational costs.

Advanced applications and considerations

• Industries facing particularly aggressive chemical environments demonstrate the critical importance of proper fluoropolymer lining systems. Hi-purity chemicals such as hydrofluoric acid, sulfuric acid and phosphoric acid used in semiconductor manufacturing and solar panel manufacturing require both exceptional chemical resistance and clean room installation to maintain ultra-high purity standards.
• Pulp and paper operations contend with chlorine dioxide and sodium hydroxide at elevated temperatures, while mining processes involve concentrated sulfuric acid and other mineral acids that rapidly deteriorate unprotected equipment.
• Chemical processing plants handling organic solvents, concentrated acids and chlorinated compounds at high temperatures significantly benefit from fluoropolymer linings. For example, consider the challenges in manufacturing titanium dioxide (TiO2) where both elevated temperatures and extreme chemical conditions exist simultaneously, requiring protection against hot concentrated sulfuric acid and chlorine at elevated temperatures.
• The semiconductor industry and the solar panel manufacturing industries require both chemical resistance and exceptional purity to prevent product contamination, particularly in chemical transportation, bulk storage tanks, days tanks, process vessels and ultra high purity water (UHPW) applications.

The success of a lining system depends heavily on proper substrate preparation, careful installation and appropriate material selection. ECM’s systematic approach addresses these critical factors through detailed engineering analysis, quality control procedures and documented installation protocols.

ECM’s stringent finished product testing before shipment includes state-of-the-art di-electric spark testing, proprietary helium leak testing and heated hydrostatic pressure testing. This attention to detail, along with field lining and service capabilities, separates KMT/ECM from all other suppliers of Fluoropolymer sheet lining systems.

Don’t risk equipment failure or product contamination with inadequate protection systems. When facing aggressive or harsh chemical conditions and hi-purity processing requirements, choose a robust fluoropolymer lining instead of a less desirable spray coating. Contact ECM’s engineering team to evaluate your process requirements and develop a customized fluoropolymer lining solution that fits your application parameters.
